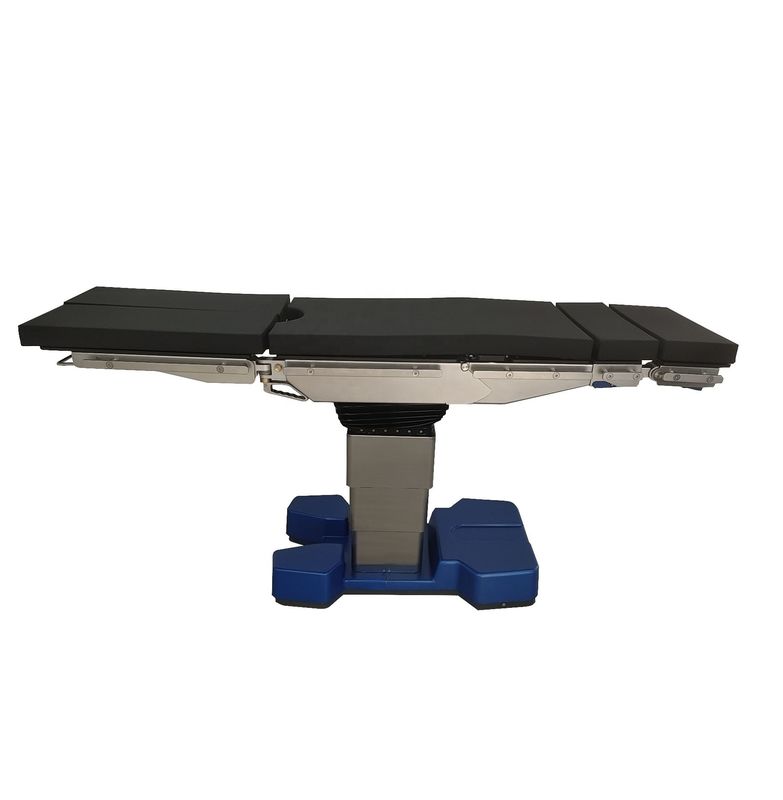

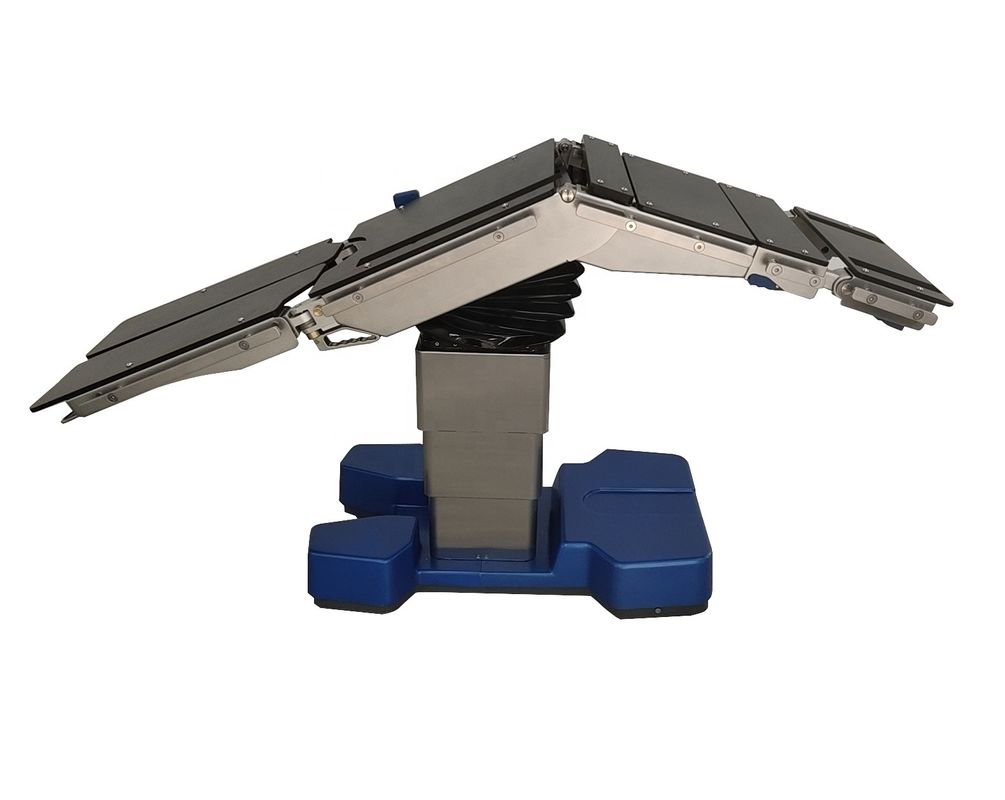

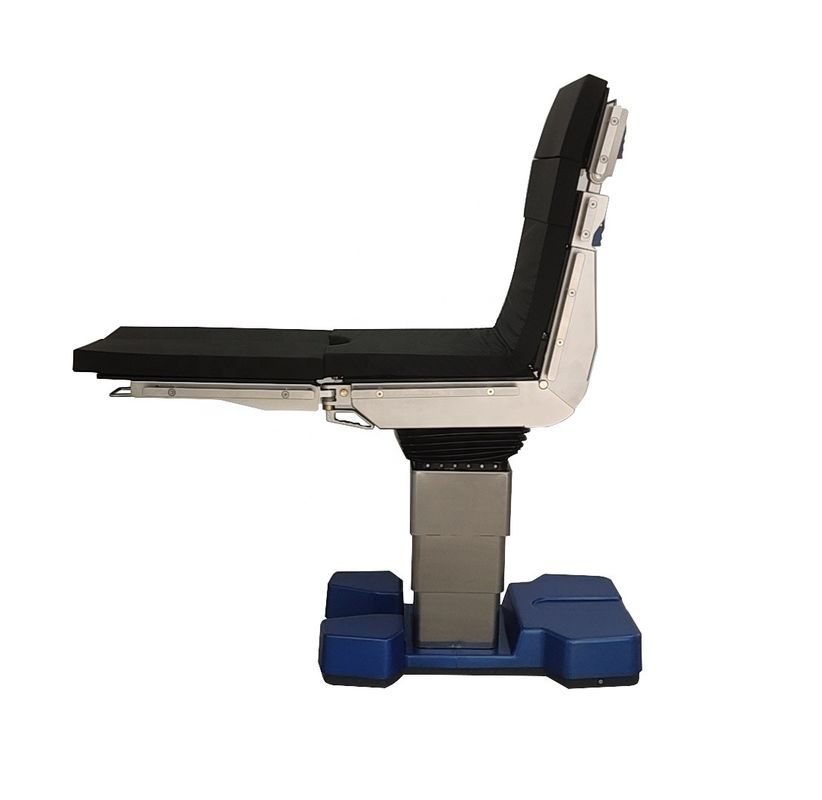

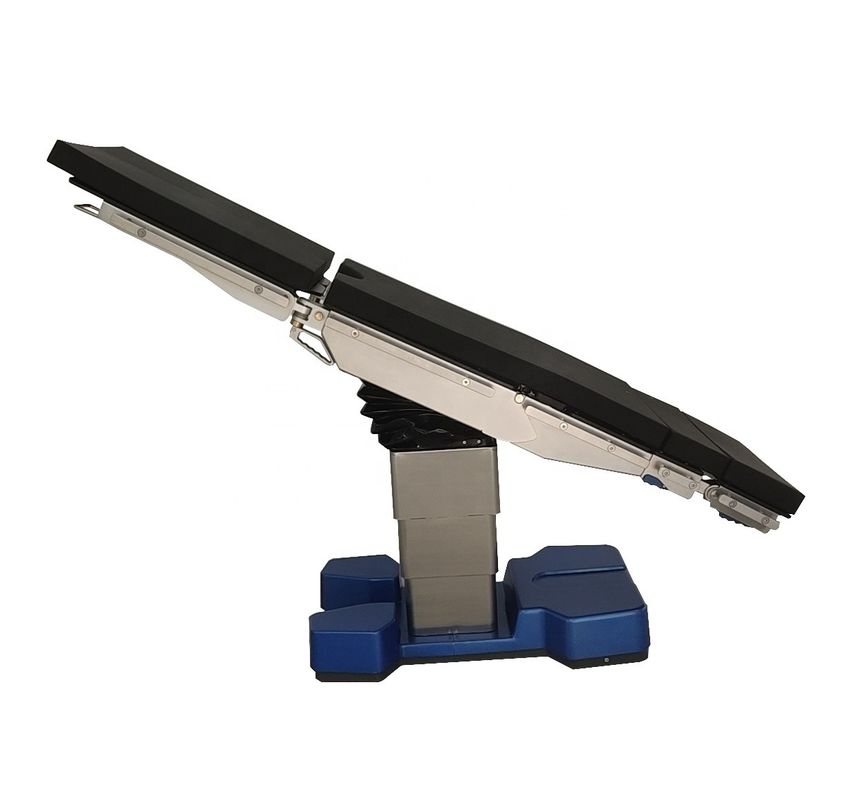

Electric hydraulic Operating Table, can be installed on any brand operating table, lift and lift 680mm-1040mm, tilt angle of 30 degrees, around 20 degrees, horizontal moving 300mm, with two brake oil pressure cylinder, The electric hydraulic system is divided into two systems, the oil section and the circuit part. The oil circuit includes the oil pump, the oil pipe, the electromagnetic valve group and the oil pressure cylinder; the circuit part contains the most basic functional configuration of the remote control, the power supply, the main board and so on.also according to customer needs to customize other styles and so,
This is a multi-functional electric hydraulic operating table. When the operating table has no electricity, including the battery, it can start the mechanical function. It can step on every movement, lift, left and right, back and back, back up and down, translation and other functions.
parameter
| Model | AT9000 |
| Length | 2070mm |
| width | 540mm |
| Front and rear tilt | ±30° |
| Left and right inclination | ±20° |
| Back angle | +80°- -40° |
| Vertical translation | 320mm |
| Foot angle | +30°--90° |
| Horizontal angle of legs | 180° |
| Lifting range | 600mm-950mm |
Our products are sold all over the world, you can rest assured.
