Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent

Products - Electro Hydraulic Operating Table
  • Highlight

    Orthopedic Electro Hydraulic Operating Table

    ,

    300mm Electro Hydraulic Operating Table

    ,

    Radiolucent orthopedic ot table

  • Type
    Operating Table, Operating Table
  • Instrument Classification
    Class II
  • Power Source
    Electric Hydraulic
  • Warranty
    1 Year
  • After-sale Service
    Online Technical Support
  • Product Name
    OT Table C-ARM X-RAY Operation Table Hydraulic Operating Table
  • Material
    304 Stainless Steel
  • Keywords
    Hydraulic Lift Column
  • Lifting Size
    540mm-1040mm
  • Left And Right Angle
    ±20°
  • Front And Back Tilt
    ±30°
  • Translation
    300mm
  • Application
    Surgical
  • OEM
    Accept OEM
  • Port
    Shanghai Port
  • Place of Origin
    Shanghai, China
  • Brand Name
    Feynman
  • Model Number
    AT600
  • Price
    $6,100.00/pieces 1-10 pieces
  • Packaging Details
    Export wooden case for High End Universal Orthopedic Electrical OT Table C-ARM X-RAY Radiolucent Operation Table Bed Manual Hydraulic Operating Table
  • Supply Ability
    200 Piece/Pieces per Month

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent

  • Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent
  • Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent
  • Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent
  • Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent
  • Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent
  • Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent
Get Price Contact Now
Product Description

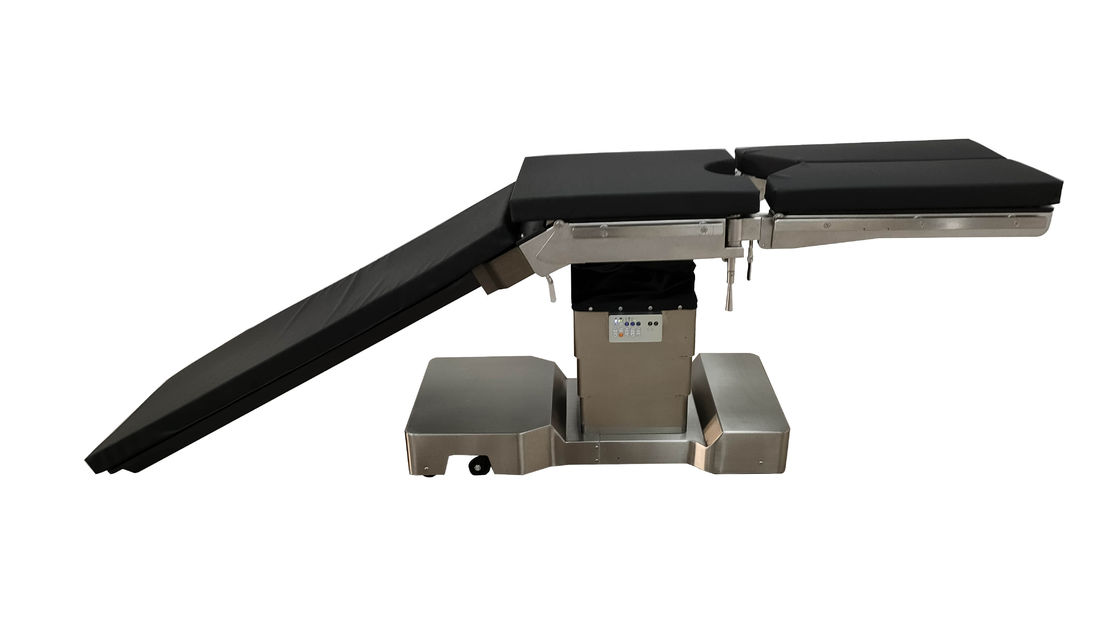

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 0

High End Universal Orthopedic Electrical OT Table C-ARM X-RAY Radiolucent Operation Table Bed Manual Hydraulic Operating Table
Electric hydraulic Operating Table can be cooperate to use with any brand operating table, with lift distance 680mm-1040mm, tilt angle of 30 degrees, inclination angle 20 degrees, horizontal moving 300mm, with two brake oil pressure cylinder. The electric hydraulic system is divided into two systems, the oil section and the circuit part. The oil circuit includes the oil pump, the oil pipe, the electromagnetic valve group and the oil pressure cylinder; the circuit part contains the most basic functional configuration of the remote control, the power supply, and the main board can be also customized.This is a multi-functional electric hydraulic operating table. When the operating table is without electricity, it can start the mechanical function. It can be adjusted on every movement, lift, left and right, back and back, back up and down, translation and other functions.

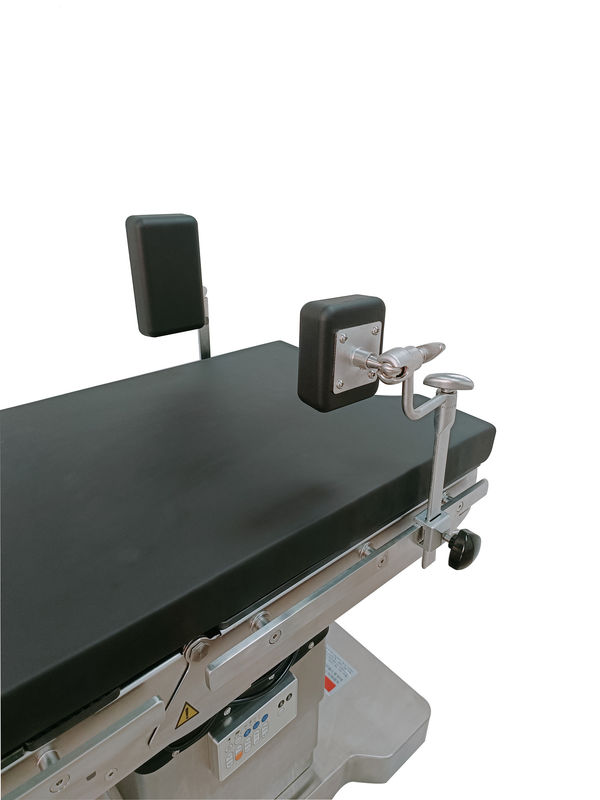

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 1

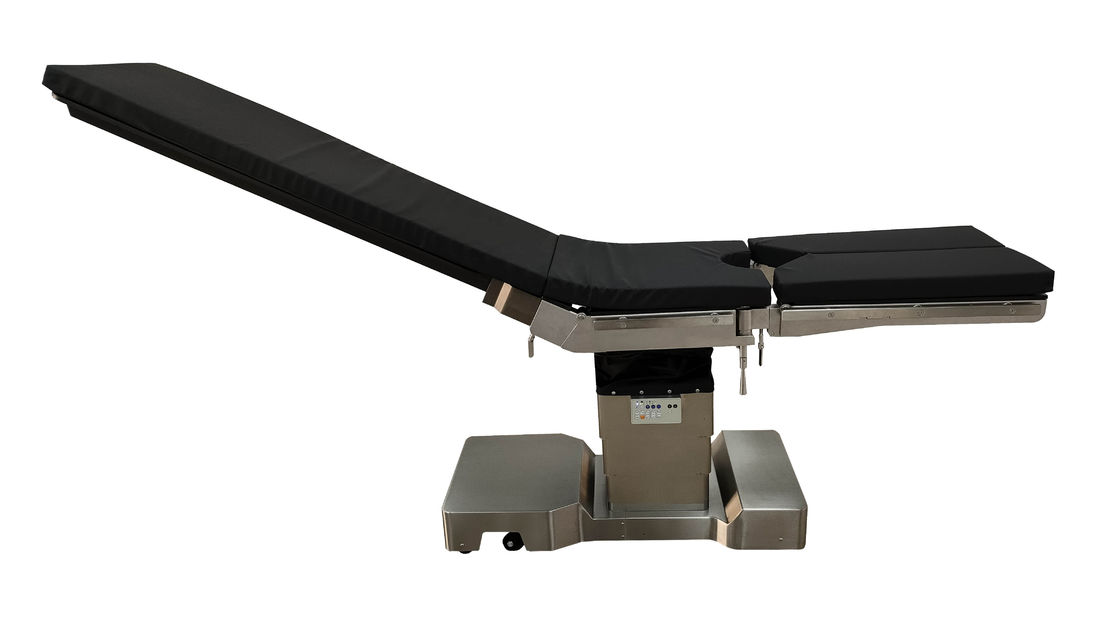

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 2

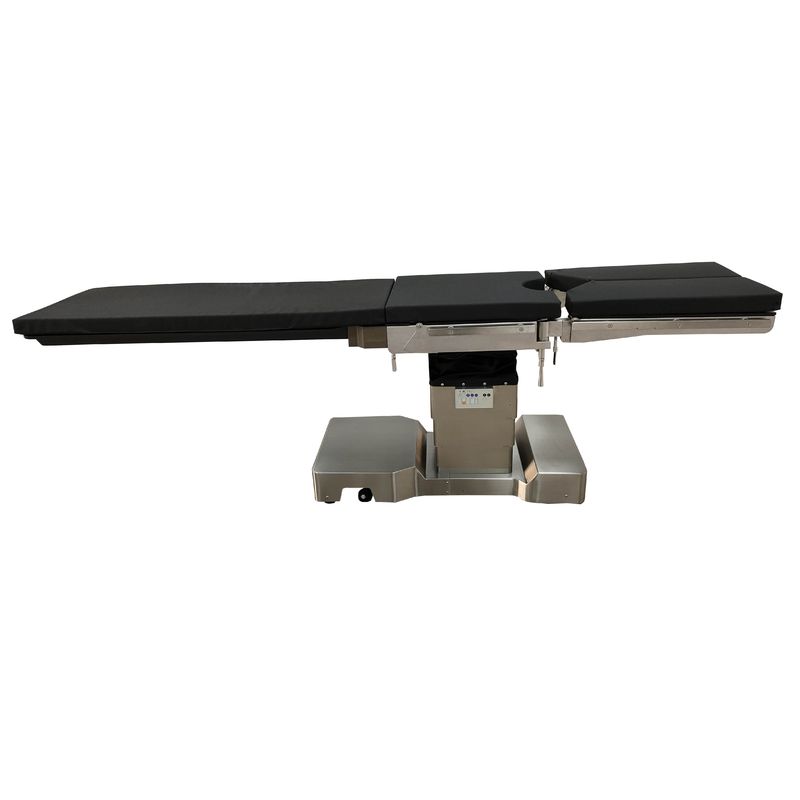

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 3

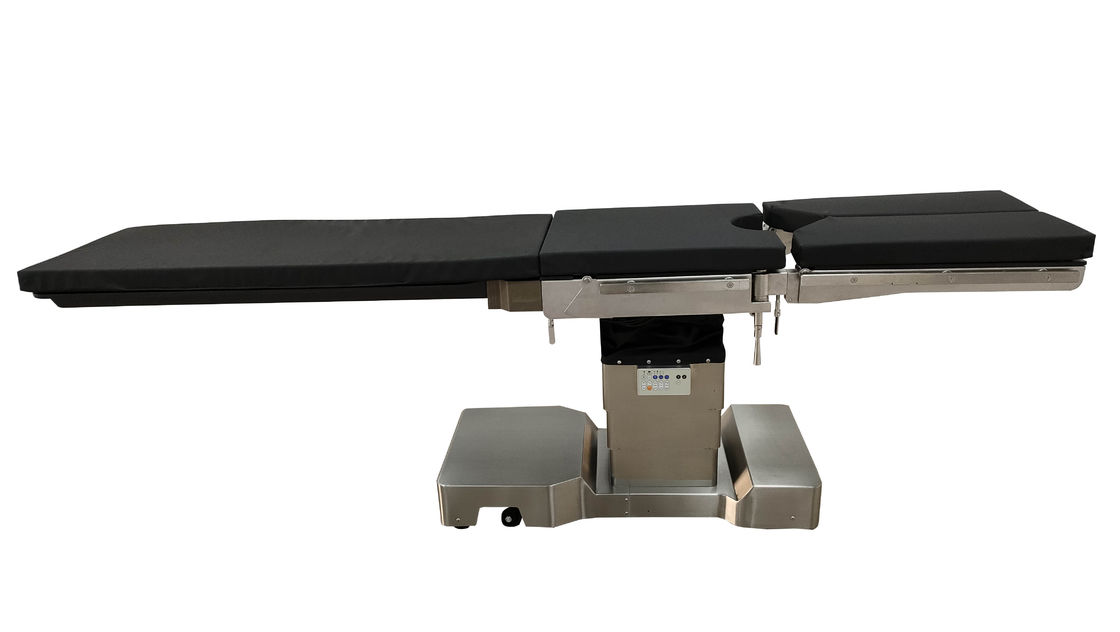

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 4
Specification
Model
AT600
Length
2750mm
width
540mm
Front and rear tilt
±30°
Left and right inclination
±20°
Back angle
+80°/ -40°
Vertical translation
300mm
Foot angle
+30°--90°
Horizontal angle of legs
180°
Lifting range
540mm-1040mm
Our Advantages

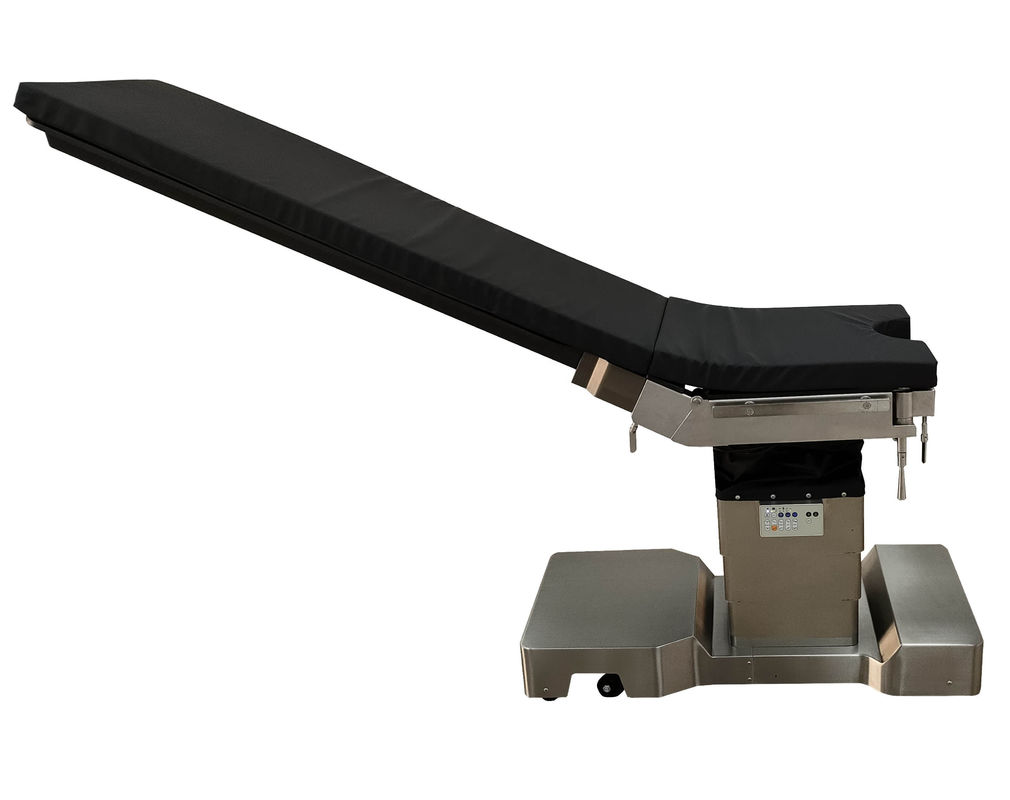

Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 5
1. Base, lifting column shell, bed body, side rail adopt high quality 304 stainless steel material with acid and alkali
resistance, corrosion resistance feature, which is convenient to clean.
2.It can realize a key reset, memory, fault remind function with microcomputer control.
3. It adopts electric hydraulic system drive bed operation, and includes bed lift, tilt, left and right, tilt, back lift,
horizontal movement, horizontal reset, double controller system.
4. It is suitable for orthopedics, urology, obstetrics and gynecology operations, etc.
Packing & Delivery
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 6
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 7
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 8
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 9
Certifications
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 10
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 11
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 12
Company Profile
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 13
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 14
Profile of Shanghai Feiman Medical Technology Co., Ltd
Shanghai Feiman Medical Technology Co., Ltd is the comprehensive medical equipment manufacturer integrating in research, development, sales and service. The main products are operating table accessories, covering carbon fiber operating table, carbon fiber spinal frame system, shoulder joint traction frame system, pressurizer for irrigation fluid bag, lateral recumbent position fixation system, hand traction device, neurosurgery head frame (metal/carbon fiber), surgical fixation device, stirrup-shape multifunctional leg frame, multi-joint universal arm, spine surgery posture frame, carbon fiber lower limb orthopedic traction frame, surgical posture pad and all ordinary accessories of the operating table..
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 15
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 16
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 17
FAQ
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 18
Q: How are we going to install the equipment after purchasing?
A: We provide professional installation video to illustrate.

Q: How do you make sure that the product has high quality?
A: We have CE and ISO certificate. We also have production/inspection
report before packing.

Q: Can you put our logo on products?
A: Absolutely yes with detailed information such as logo. We will show you pictures of your
logo on the product before packing.

Q: Do you accept OEM (Original Equipment Manufacturer) service?
A: Yes. We accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 tears of OEM experiences.
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 19
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 20
Orthopedic Electro Hydraulic Operating Table High End Universal Electrical OT Table C-ARM X-RAY Radiolucent 21
